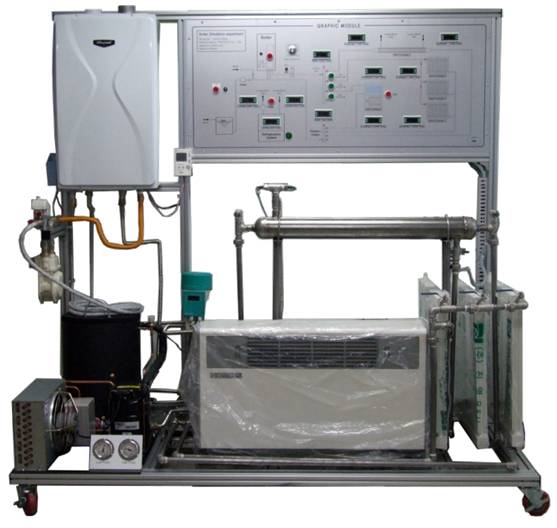

 Click to enlarge image |
|
Features
-Available to have Experiment of Gas boiler control and check fault.
-Available to experiment temp. changing and calculate, and understand a couple of tube heat exchanger through a dual tube heat exchanger.
-Available to check plumbing schematic, and study principle of condensing system.
-Available to test on operation of apparatus.
-Available to select each of control type between vertical and parallel in a dual heat exchanger.
-Available to save all of data and monitor automatic.
Specification
- Tank : STS 20ℓ
- Boiler : 10,000kcal/h Over
- Heat exchange device : 80A-15A, Multiple Pipe Type
- Gas Meter : 3/8B, 0~5V Out Put
- Solenoid valve : AC220V 15A
- GAS Safety valve : AC220V 15A
- Temperature control radiator: Stand Type , Fan Motor Type
- Water piping : STS 15A
- Feed pump: AC220V 400W 30ℓ
- Hot water distribution: 4Point 15A
- Temperature Sensors : Temperature Control type
- Freezer heat exchangers: 1/2hp Over
- Refrigeration Controller (MSM-1000)
- Refrigeration Controller Program (MSB-1000)
|
|
