 Click to enlarge image |
|
Spectification
•Oscilloscope
•Bandwidth 20 MHz (10 MHz on ±50 mV range)
•Channels 4
•Vertical resolution 12 bits
•Enhanced vertical resolution 16 bits pulse width, runt pulse, dropout, windowed
•Maximum pre trigger delay 10 x “per division” time base setting
•Maximum post trigger delay 50 s
•Notebook
•CPU : INTEL T7250
•RAM : 2GB
•HDD : 320GB
•ODD : DVD-MULTI
•BATTERY : 8CELL
•I/O : HDMI, D-SUB, USB 3EA
•LCD : 20 inch
Feature

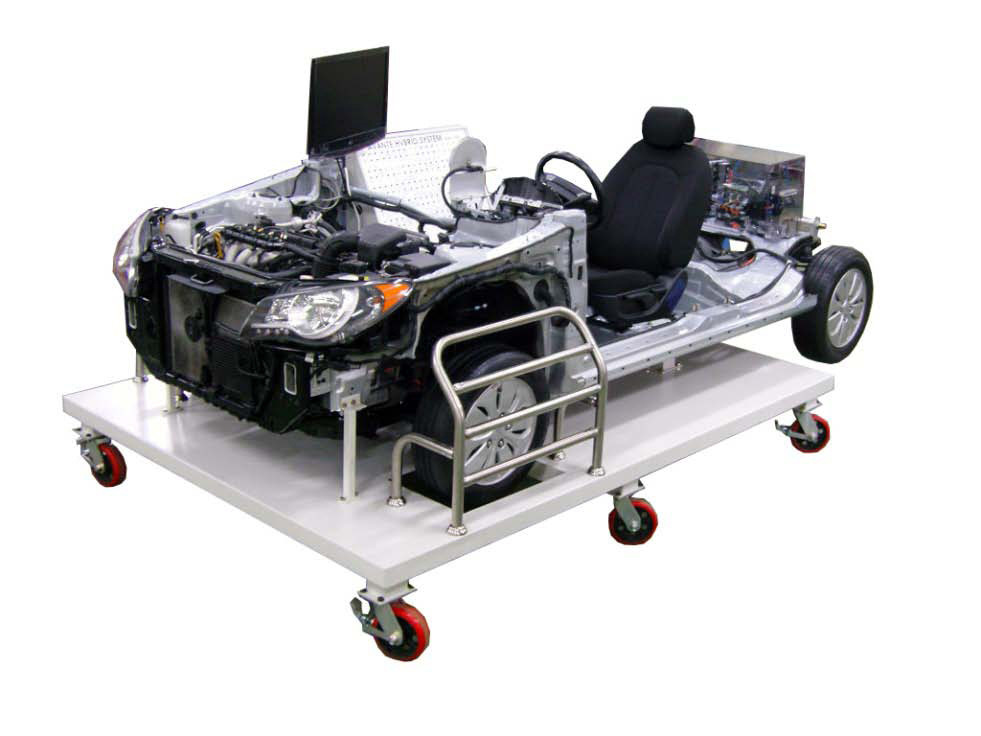

•Manufacturing hybrid starting simulation with Avante 1.6 engine, Hybrid control Unit
• Attached sensor of slant angle, brake boost pressure
•To check the operation such as start of hybrid engine, power support by idle or slow move, driving force support when speed up, energy retrieve decreasing speed (battery charge) with brake switch
•With the center of HCU (hybrid control unit), connect each control unit, ECU, TCM, BMS ECU, MCU, LDC with CAN communication.
•Panel display engine start –engine status•With diagnosis equipment, check sensor, short circuit, failure diagnosis and output power
•Display panel, ECU circuit, education check terminal and toggle switches are set up in the front control panel, it is convenient to check failure, diagnosis, test and experiment.
|
|
