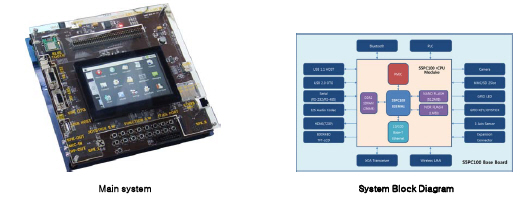

 Click to enlarge image |
|
Benefit
•Training of embedded system based on ARM, Embedded Linux and Android Programming
• Training System that is able to develop various systems such as PLC system and platform android smart phone
• A high performance CPU and large memory capacity is installed, which is designed for ARM Core Cortex-A8
• It is able to use to resolve the scope of software / hardware, due to CPU that supports more than 330pins of external signals.
• It is able to apply in developing various equipment by installed device for multimedia, networking and CLP
• Extended user port of I2C or GPIO are built in, and it makes the user to be able to connect expansion devices (PWM Timer, ADC_IN [0 .. 9], I2C, SPI, Interrupt external CAN)
• Variety of devices are suitable for multimedia application. (HDMI, NTSC, Camera and Controller WM8580 audio and speakers are built-in)
• It is easily replaceable to not only basic 4.8 inch of LCD and TFT , but also 7 inch(800x480) of LCD.
List of Experiment
•Configuration of platform and features.
• BOOT MODE setting
• Telecommunication module setting
• Installation instruction of U-Boot through USB download
• Installation instruction of U-Boot through internet download
• Installation instruction of U-Boot to NOR FLASH
• Installation of TFRP server
• Installation of NFS server
• Package installation for platform development
• U-Boot bootloader compile
• Linux kernel compile
• Installation of Linux kernel
• Installation of Root File System
• Keypad description
Accessories
•
Power Adapter
• Mini USB Cable
• Serial Cable
• LAN Cable
• Manual
• Example CD
|
|
